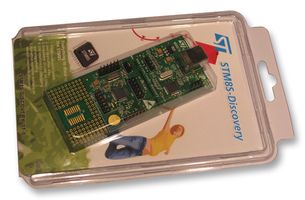

STM8S_DISCOVERY used STM32_Part :-) V1.0

Used the STM 32 form STM8S_DISCOVERY for CAN

Code size:100kb Author:Matthias
Source files included:yes Version:V1.0
Use circleOS:no Creation date:2011-07-25 16:46:13
Hardware modification:yes Modification date:2011-07-25 16:46:13
Based on the STM32 Primer:no

Downloads:238 Views:21173

Vote:
Average ratings:0/5 (0 rates)

Download:    STM8S-DISCOVERY-used-STM32-Part-V1.0.zip (365 KB)

Description:

/********************* (C) COPYRIGHT RAISONANCE S.A.S. *********************************/
/********************* (C) COPYRIGHT STMicroelectronics ********************************/
/********************* (C) Matthias ****************************************************/
/* optimized for STM8S_DISCOVERY_STM32_Part, extended and amended by Matthias email webmaster@tg-info.de

Project "STM8S_DISCOVERY_STM32_Part CAN"
Need other RLINK to Programm.

!! Hardware change !!
The Can driver is connected the external.
USB D- == CAN RX
USB D+ == CAN TX
C18 to 10uf 20V for more Input range -> work with 12 Volt for Cars
R18 remove
R21 change 0 Ohm
R22 change 0 Ohm

First step ist erase the STM32 with RFlasher7 open erase.rprj

1. Push erase
2. Option Bytes action , aktivate Program -> set all to FF -> push Write target Option Bytes now!
this must be done several times until he takes over (Step 1 and 2)
